Stubend - Lap Joint

A stub end with a lap joint is a specific type of fitting used in piping systems to connect pipes to flanges or other components. It is widely used in various industries like chemical processing, oil and gas, and water treatment. This particular fitting allows for easy installation and disassembly, making it ideal for systems that require frequent maintenance or modification.

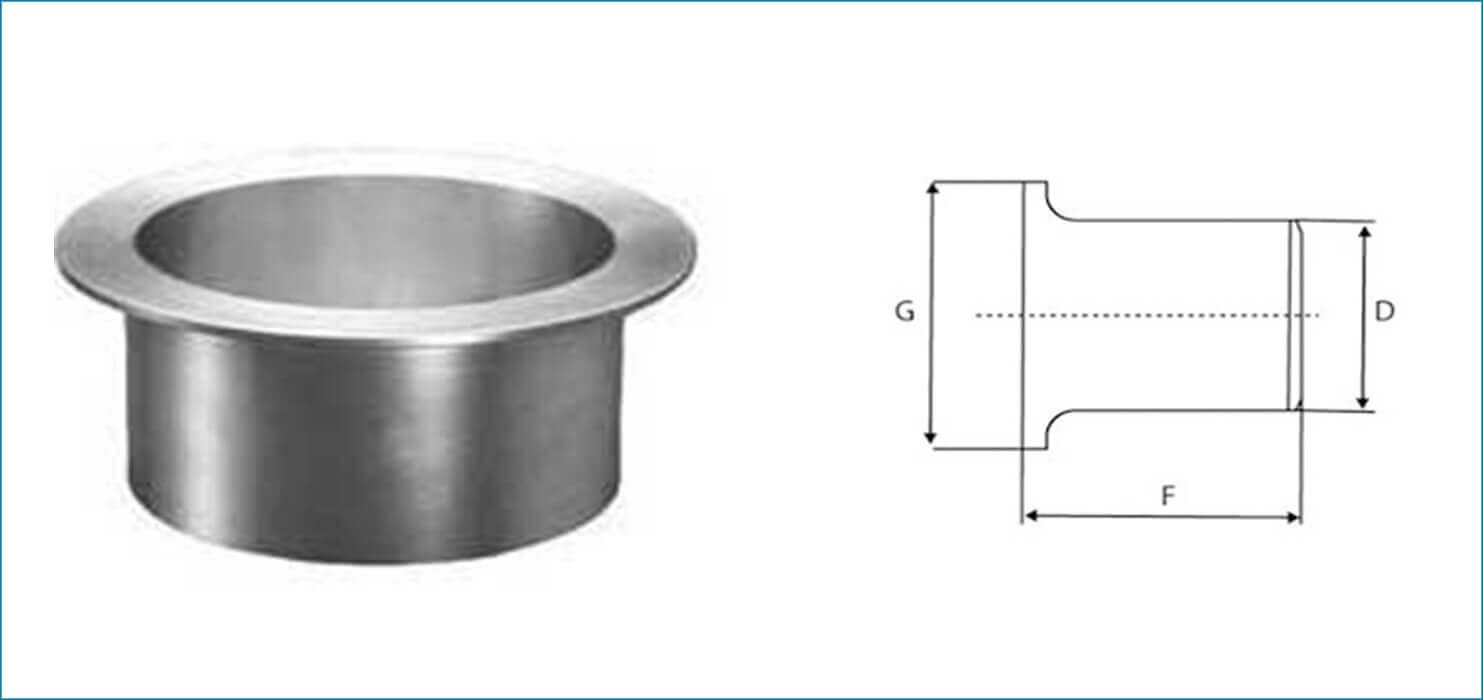

The stub end is a short piece of pipe, typically with a beveled end, which is welded to the pipe. The lap joint flange is then slipped over the stub end, creating a connection that can be bolted to another flange or component. This design eliminates the need for a welded connection between the pipe and the flange, providing flexibility and ease of maintenance.

Enquire Now Whatsapp Us

Advantages of Stub End - Lap Joint:

• Chemical and Petrochemical Plants: Used in piping systems where frequent maintenance and modifications are necessary. The easy disassembly makes it ideal for systems handling aggressive chemicals or high-pressure fluids.
• Offshore and Marine Industry: In offshore oil rigs or marine environments, where corrosion resistance and ease of disassembly are critical, stub end-lap joint fittings are commonly used to connect pipes and equipment.
• Water Treatment Plants: Used in water and wastewater treatment facilities for connecting pipes to equipment or other piping systems, especially in areas requiring easy maintenance and replacement.
• Food and Beverage Industry: In sanitary applications where easy cleaning and maintenance are required, the lap joint fitting allows for quick disassembly, making it ideal for connecting pipes in processing equipment.
• Power Plants: Stub end-lap joint connections are often found in high-temperature and high-pressure systems in power generation plants where ease of maintenance and resistance to corrosion are important.
